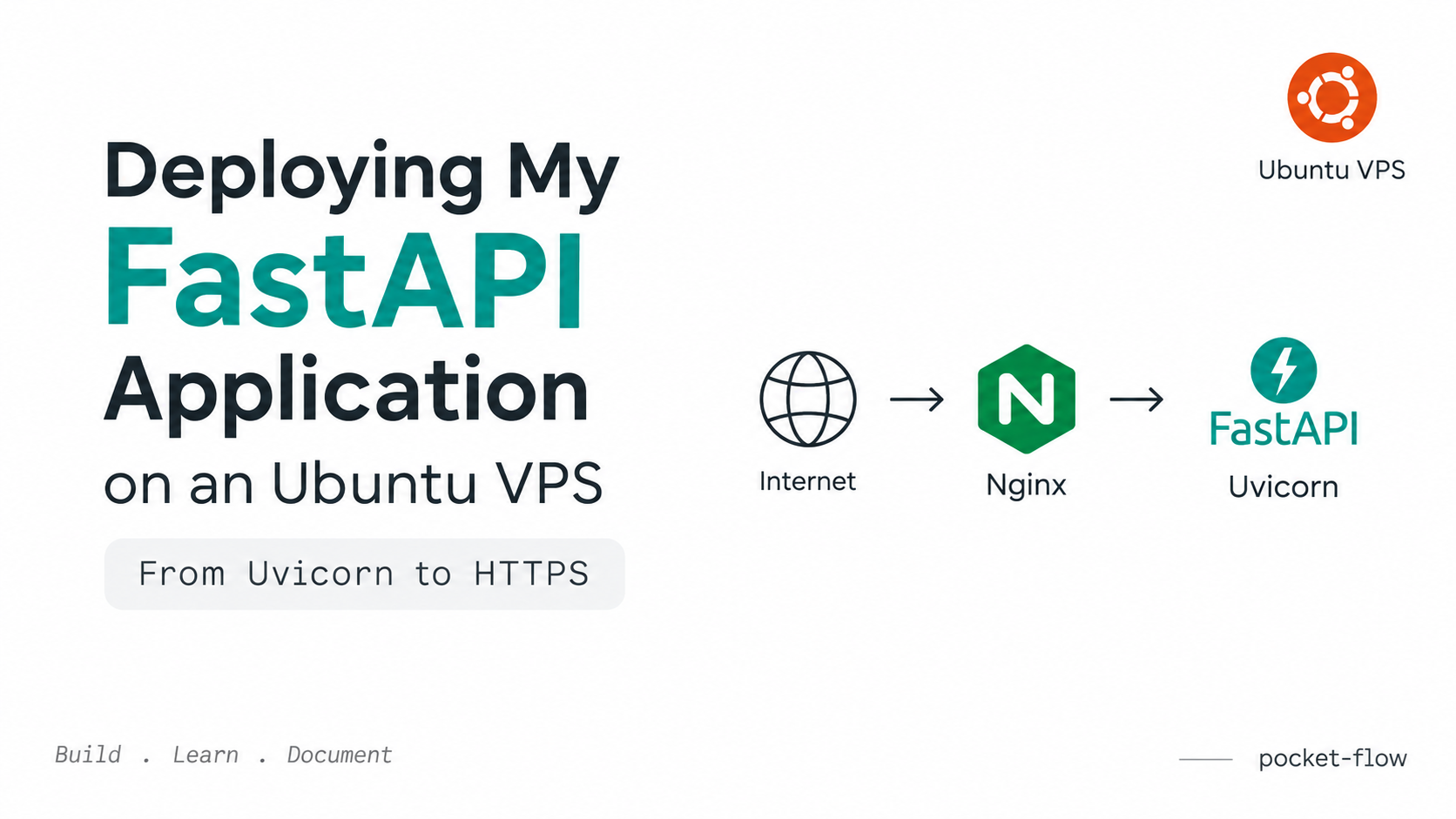

Deploying My FastAPI Application on an Ubuntu VPS: From Uvicorn to HTTPS

Recently, I was setting up one of my backend applications on an Ubuntu VPS from InterServer. I thought the deployment would be simple: upload the project, install the dependencies, run Uvicorn, and that's it.

But while doing it, I came across a few things which I had to understand properly, especially Uvicorn, DNS, Nginx, ports, HTTPS, and virtual environments.

So I'm writing down the process here, mainly for myself and anyone who is also doing this for the first time.

#1. Running FastAPI with Uvicorn

My application is a FastAPI application.

After setting up the virtual environment and installing the dependencies, I ran the application using:

uvicorn app.main:app --host 0.0.0.0 --port 8000

Here:

• app.main:app means my FastAPI app is inside app/main.py
• --host 0.0.0.0 means it can accept connections from outside the server
• --port 8000 means Uvicorn is running on port 8000

I could then access my application using:

http://162.35.175.67:8000

And the Swagger documentation:

http://162.35.175.67:8000/docs

But there was one problem.

If I close the SSH connection, the application can also stop because it is attached to that terminal session.

So I used nohup:

nohup uvicorn app.main:app --host 0.0.0.0 --port 8000 > app.log 2>&1 &

Now Uvicorn runs in the background and continues running after closing the SSH session.

I checked it using:

ps aux | grep uvicorn

and I could see Uvicorn running.

#2. Connecting a Domain to the Server

I didn't want to use the IP address every time.

I wanted something like:

api.pocket-flow.jotech.in

My VPS is hosted on InterServer, but I manage the DNS for the domain through GoDaddy.

So I added an A record in GoDaddy DNS:

Type:  A
Name:  api.pocket-flow
Value: 162.35.175.67
TTL:   600

After adding it, I checked from my computer:

nslookup api.pocket-flow.jotech.in

It returned:

api.pocket-flow.jotech.in
162.35.175.67

So the DNS was working.

One thing I learned here is that DNS doesn't care about the port.

For example, this is not what you put in the DNS record:

162.35.175.67:8000

The DNS record only points to the IP address:

162.35.175.67

The port is handled separately.

#3. Understanding the Port

This was something I wanted to understand properly.

If I open:

http://api.pocket-flow.jotech.in:8000

the browser first uses DNS to find the IP:

api.pocket-flow.jotech.in
162.35.175.67

Then it connects to port 8000:

162.35.175.67:8000

My Uvicorn application is listening on that port.

So the request reaches:

Uvicorn
FastAPI

But if I open:

http://api.pocket-flow.jotech.in

I don't specify a port.

For HTTP, the browser uses the default port:

80

So the request goes to:

162.35.175.67:80

But my Uvicorn application is running on:

162.35.175.67:8000

So something needs to receive the request on port 80 and pass it to my application.

That's where Nginx comes in.

#4. Installing Nginx

I installed Nginx on my InterServer Ubuntu VPS:

sudo apt update
sudo apt install nginx -y

Then checked:

sudo systemctl status nginx

It showed:

Active: active (running)

So Nginx was running successfully.

#5. Configuring Nginx

I created a configuration file:

sudo nano /etc/nginx/sites-available/pocket-flow

Then added:

server {
    listen 80;
    server_name api.pocket-flow.jotech.in;

    location / {
        proxy_pass http://127.0.0.1:8000;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Then I checked the Nginx configuration:

sudo nginx -t

It returned:

syntax is ok
test is successful

Then I enabled the site:

sudo ln -s /etc/nginx/sites-available/pocket-flow /etc/nginx/sites-enabled/

and reloaded Nginx:

sudo systemctl reload nginx

Now I could access my API using:

http://api.pocket-flow.jotech.in/docs

I didn't need to add :8000 anymore.

#6. Understanding What Nginx Is Doing

This was probably the most useful thing I understood from the setup.

When I open:

http://api.pocket-flow.jotech.in/docs

the request reaches my server on port 80.

Nginx receives the request and passes it to Uvicorn, which is running on port 8000.

The basic flow is:

                         Internet
                            │
                            ↓
              api.pocket-flow.jotech.in
                            │
                            ↓
                     162.35.175.67
                            │
                            ↓
                         Nginx :80
                            │
                            ↓
                    Uvicorn :8000
                            │
                            ↓
                         FastAPI

Nginx is acting as a reverse proxy.

The browser doesn't need to know that my FastAPI application is running on port 8000.

This also gives me a proper place to handle things like HTTPS, request routing, headers, and other web-server related configuration.

#7. Adding HTTPS

The next thing I wanted was:

https://api.pocket-flow.jotech.in

instead of:

http://api.pocket-flow.jotech.in

For this, I used Let's Encrypt with Certbot.

I installed Certbot and then ran:

sudo certbot --nginx

Certbot configured the SSL certificate with Nginx.

After that, I could access:

https://api.pocket-flow.jotech.in/docs

The architecture now looks like:

                         Internet
                            │
                            ↓
              api.pocket-flow.jotech.in
                            │
                            ↓
                     162.35.175.67
                            │
                            ↓
                        Nginx :443
                            │
                            ↓
                    Uvicorn :8000
                            │
                            ↓
                         FastAPI

Nginx handles the HTTPS connection, while Uvicorn continues running the FastAPI application.

So I don't need to configure SSL directly inside Uvicorn.

#8. One Small Mistake I Made With the Virtual Environment

This was a simple mistake, but I think it's worth mentioning.

After changing my .env, I wanted to restart Uvicorn.

I stopped the old process and tried:

nohup uvicorn app.main:app --host 0.0.0.0 --port 8000 > app.log 2>&1 &

But it failed with:

Exit 127

Then I noticed that my terminal prompt was:

root@vps3602820

instead of:

(venv) root@vps3602820

I had closed SSH and opened it again, so the virtual environment was not activated.

I fixed it with:

source /root/projects/backend/venv/bin/activate

Then:

nohup uvicorn app.main:app --host 0.0.0.0 --port 8000 > app.log 2>&1 &

worked again.

This reminded me that the virtual environment stays on the server, but it is not automatically activated in every new SSH session.

#9. What I Have Now

My current setup is basically:

                         Internet
                            │
                            ↓
              api.pocket-flow.jotech.in
                            │
                            ↓
                     162.35.175.67
                            │
                            ↓
                        Nginx :443
                            │
                            ↓
                    Uvicorn :8000
                            │
                            ↓
                         FastAPI

And my API is accessible through:

https://api.pocket-flow.jotech.in

instead of directly using:

http://162.35.175.67:8000

There is still one thing I want to improve.

Right now, I'm using nohup to keep Uvicorn running. For a proper production setup, I should configure systemd for the FastAPI application.

That would allow the application to:

• Start automatically after a server reboot
• Restart if the application crashes
• Be managed using systemctl
• Avoid manually activating the virtual environment every time

For now, this setup helped me understand something I had seen many times but never properly understood.

DNS, ports, Nginx, reverse proxy, Uvicorn and HTTPS are different pieces, and they work together to make a backend application available through a proper domain.
